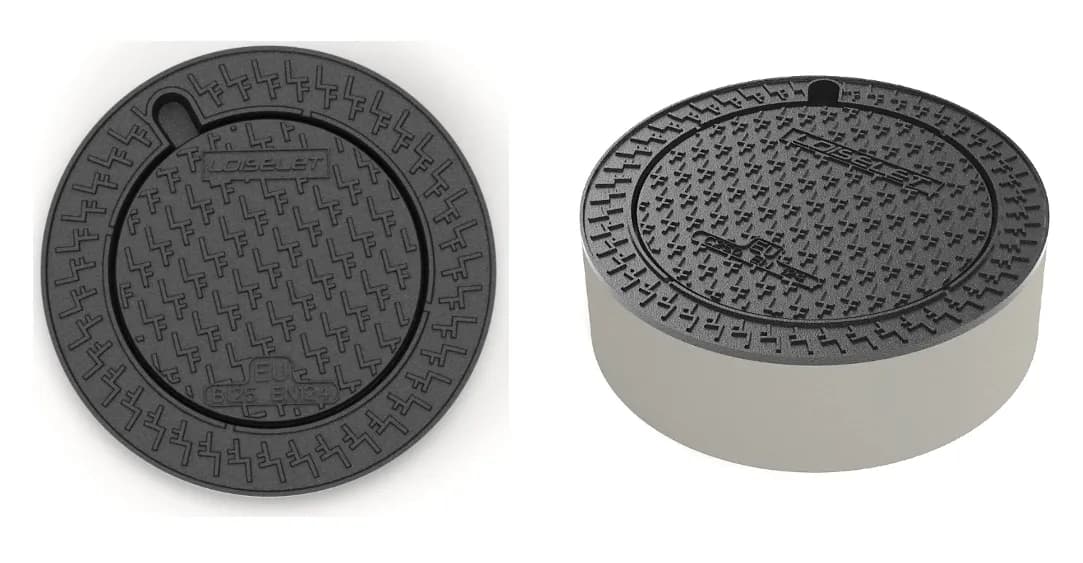

Hydraulic connection
Advantages
- Coping integrated with the frame's dimensions to prevent damage from trucks and construction machinery.
- GS cast iron cover (said to be unbreakable).
- Reinforced concrete coping/capping and larger bearing surface.
EN 124 Class C250 – 250 KN
| Use | Ref. | Weight (kg) | Packaging by | Passage | Diameter A (mm) | Diameter B (mm) | Diameter C (mm) |
|---|---|---|---|---|---|---|---|
| PVC 250 | CHC 300 | 27 | 48 | 230 | 415 | 325 | 150 |
| PVC 315 | — | — | — | — | — | — | — |
| PVC 400 | CHC 400 | 37 | 36 | 320 | 500 | 415 | 150 |
EN 124 Class B125 – 125 KN
| Usage | Ref. | Weight (kg) | Packaging by | Passage | Diam. A (mm) | Diameter B (mm) | Diameter C (mm) |
|---|---|---|---|---|---|---|---|
| PVC 250 | CHB 300 | 25 | 48 | 230 | 415 | 325 | 150 |
| PVC 315 | — | — | — | — | — | — | — |
| PVC 400 | CHB 400 | 35 | 36 | 320 | 500 | 415 | 150 |
Options
- Customizable marking (replacing Birdie foundry).
- Marking option EP – EU.
